Replacement dwelling , South Downs , Sussex

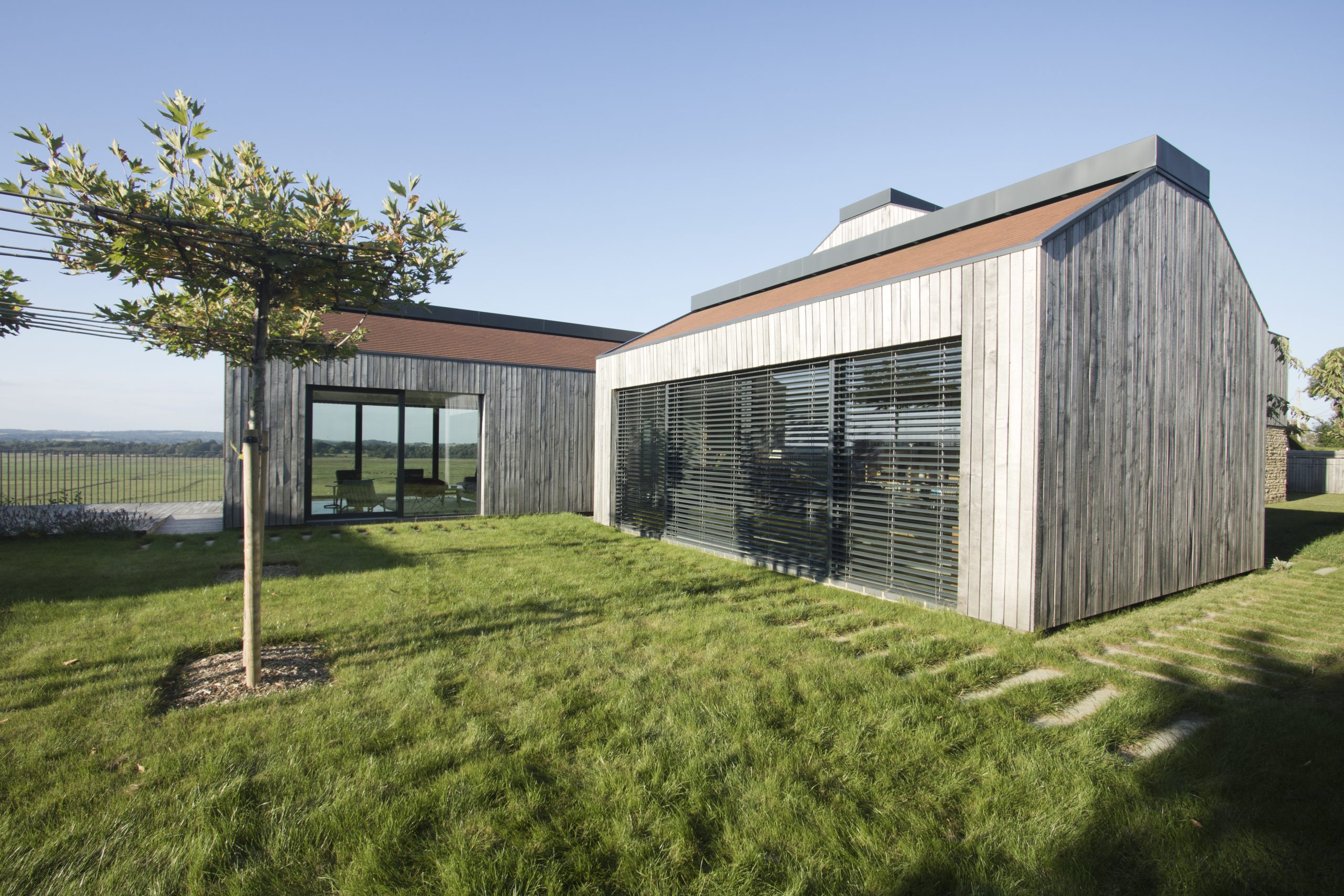

A replacement dwelling occupying a prominent position within the South Downs National Park, designed by Meloy Architecture + Design. The arrangement of the new house as three distinct wings resulted in a high form factor. A very careful balance had to be struck between the high heat loss north facing windows and the south facing windows to avoid overheating. This was achieved through a combination of fixed shading and external venetian blinds.

ASHP for heating and hot water with concealed PV on the flat ridges.

Passivhaus and Carbon/Energy statistics:

TFA: 249.5 m².
Building Form Factor: 3.98 with average wall and roof U-value 0.097 W/m²K, floor 0.109 W/m²K, and average installed whole window/door U values 0.77 W/m²K.
Overheating percentage: 2.7%.
Predicted Heating Demand: 14.9 kWh/m².yr.
Heating load: 9.4 W/m².
AC/hr @ 50 Pa: 0.32
Embodied Carbon PH15 System inc foundations: A1-A4 47.7 tonnes
Windows and doors: Katzbeck

Meets RIBA 2030 target for Operational Energy and Embodied Carbon.

Completed: May 2022
