Ha Ha House , Devon

Designed by architect Richard Maddock, Director of Kay Elliott Architects for his own home, this is a single storey modern design sited in front of an old stone retaining wall, creating a striking juxtaposition of old and new.

Passivhaus Homes collaborated on modifications to the original design to bring it up to Passivhaus performance standards, and then detailed the construction package using our PH15 System.

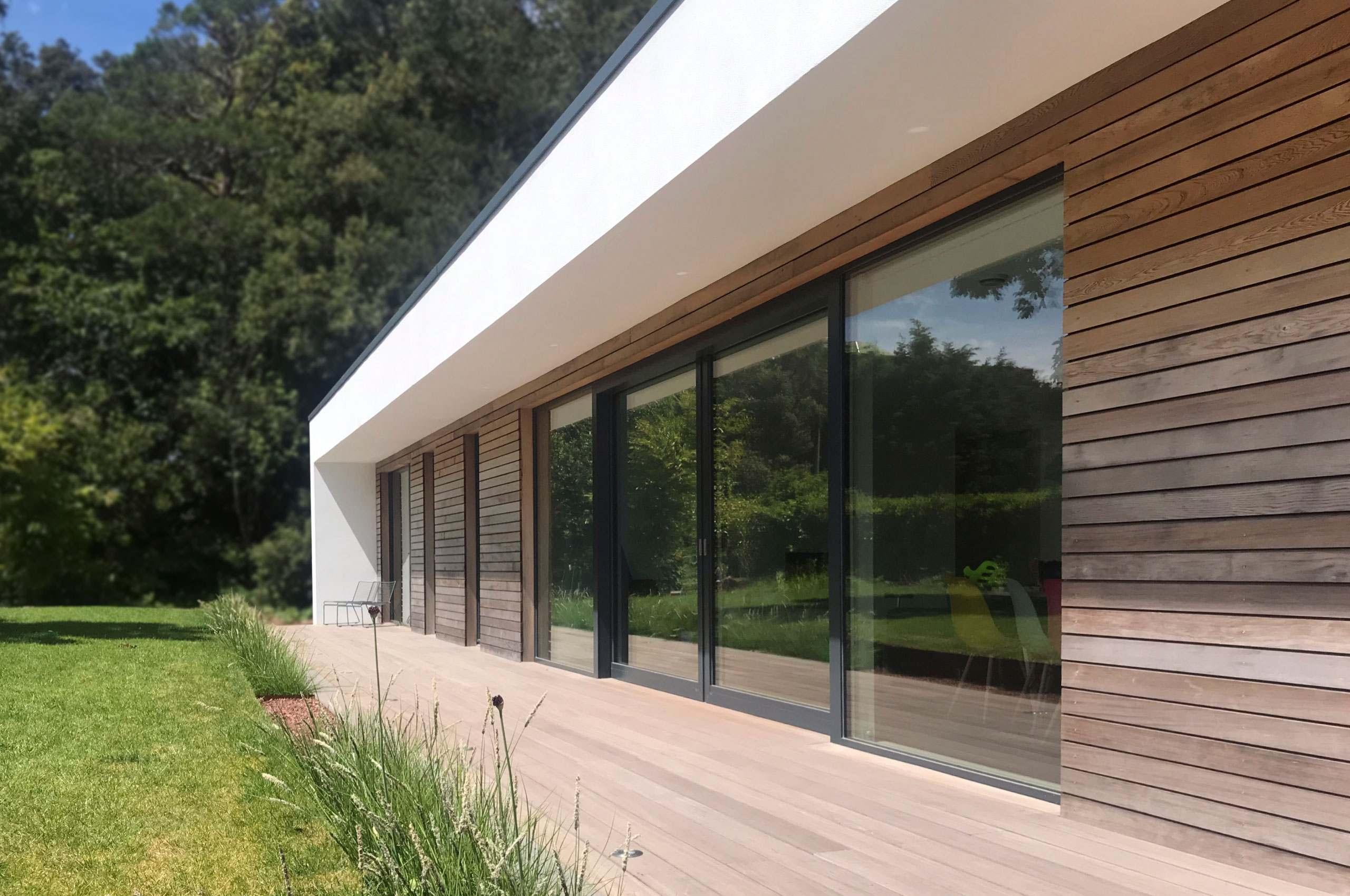

External finishes are lime render and wood cladding with a living roof.

Passivhaus and Carbon/Energy statistics:

TFA: 133 m².
Building Form Factor: 4.1 with average wall and roof U-value 0.076 W/m²K, floor 0.071 W/m²K, and average installed whole window/door U values 0.78 W/m²K.
Overheating percentage: 0.5%.
Predicted Heating Demand: 15.23 kWh/m².yr.
Heating load: 9.8 W/m².
AC/hr @ 50 Pa: 0.3

Windows and doors: Katzbeck Linea

Construction by: Passivhaus Homes Ltd

Completed: Autum 2016

Other projects

Back to projects >

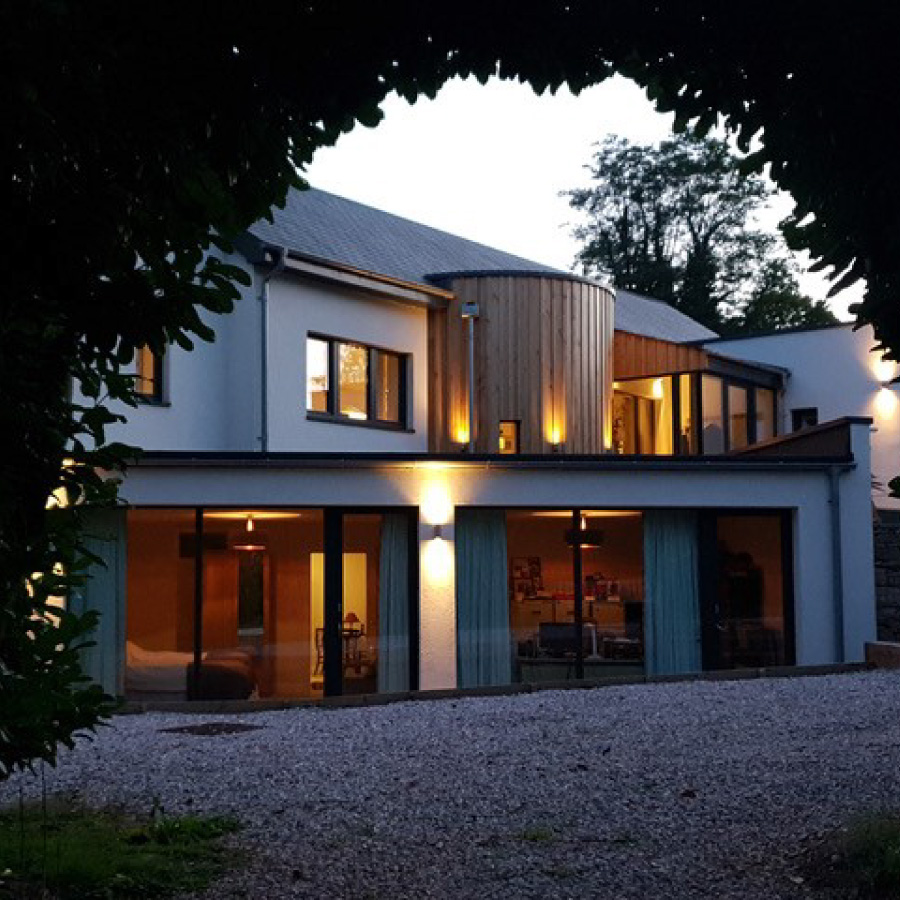

Dart House
